4.2 Trigonometric functions

From Förberedande kurs i matematik 1

Jump to: navigation, search
       Theory          Exercises

Contents:

  • The trigonometric functions cosine, sine and tangent.

Learning outcomes:

After this section, you will have learned:

  • The definition of acute, obtuse and right angles.
  • The definition of cosine, sine and tangent.
  • The values of cosine, sine and tangent for the standard angles \displaystyle 0, \displaystyle \pi/6 , \displaystyle \pi/4 , \displaystyle \pi/3 and \displaystyle \pi/2 by heart.
  • To determine the values of cosine, sine and tangent of arguments that can be reduced to a standard angle.
  • To sketch graphs of cosine, sine and tangent.
  • To solve trigonometric problems involving right-angled triangles.

Trigonometry of right-angled triangles

In the right-angled triangle below, the ratio between the length \displaystyle a of the side opposite the angle and the length \displaystyle b of the adjacent side is called the tangent of the angle \displaystyle u, and is written as \displaystyle \tan u.

[Image]

\displaystyle \tan u = \displaystyle \frac{a}{b}

The value of the ratio \displaystyle \frac{a}{b} is not dependent on the size of the triangle, but only on the angle \displaystyle u. For different values of the angle, you can get the value of the tangent either from a trigonometric table or by using a calculator (the relevent button is usually named tan).

Example 1

How high is the flagpole?

[Image]

The flagpole and its shadow form a rectangular triangle where the vertical side is unknown (marked with \displaystyle x below).

[Image]

From the definition of tangent, we have that

\displaystyle \tan 40^\circ = \frac{x}{5 \mbox{ m }}

and since \displaystyle \tan 40^\circ \approx 0\textrm{.}84 we get

\displaystyle
 x = 5\,\mbox{m} \cdot \tan 40^\circ \approx 5\,\mbox{m} \cdot 0\textrm{.}84
   = 4\textrm{.}2\,\mbox{m}\,\mbox{.}

Example 2

Determine the length of the side designated with the \displaystyle x in the figure.

[Image]

If we call the angle at the far left \displaystyle u there are two ways to construct an expression for \displaystyle \tan u.

[Image]

\displaystyle \tan u = \displaystyle \frac{22}{40}

[Image]

\displaystyle \tan u = \dfrac{x}{60}

Equality of the two expressions for \displaystyle \tan u gives

\displaystyle \frac{22}{40} = \frac{x}{60}

which leads to \displaystyle x=60 \cdot \displaystyle \frac{22}{40} = 33.

There are two other ratios in right-angled triangles that have special names. The first is \displaystyle \cos u = b/c ("cosine of \displaystyle u") and the second is \displaystyle \sin u = a/c (" sine of \displaystyle u").

[Image]

\displaystyle \begin{align*} \cos u &= \frac{b}{c}\\[8pt] \sin u &= \frac{a}{c} \end{align*}

Like the tangent the ratios that define the cosine and sine do not depend on the size of the triangle, but only on the angle \displaystyle u.

Example 3

[Image]

In the triangle on the left

\displaystyle \begin{align*}

\cos u &= \tfrac{4}{5}\\[6pt] \sin u &= \tfrac{3}{5} \end{align*}

[Image]

From the definition of sine we have

\displaystyle \sin 38^\circ = \frac{x}{5},

and if we know that \displaystyle \sin 38^\circ \approx 0\textrm{.}616 then

\displaystyle x = 5 \cdot \sin 38^\circ \approx 5 \cdot 0\textrm{.}616 \approx 3\textrm{.}1\,\mbox{.}

[Image]

Cosine is the ratio between the adjacent side and the hypotenuse, so

\displaystyle \cos 34^\circ = \frac{3}{x}\,\mbox{.}

Thus

\displaystyle x=\frac{3}{\cos 34^\circ}\,\mbox{.}

Example 4

Determine \displaystyle \sin u in the triangle

[Image]

With the help of the Pythagorean theorem the side on the right can be determined:

[Image]

\displaystyle 1^2= \bigl( \tfrac{1}{2} \bigr)^2 + x^2 \quad\Leftrightarrow\quad x = \frac{\sqrt{3}}{2}

and thus \displaystyle \sin u = \frac{\sqrt{3}/2}{1} = \frac{\sqrt{3}}{2}.


Some standard angles

For some angles, namely 30°, 45° and 60°, it is relatively easy to calculate the exact values of the trigonometric functions.

Example 5

We start with a square having sides of length 1. A diagonal of the square divides the right angles in opposite corners into two equal parts of 45°.


[Image]


Using the Pythagorean theorem, we can determine the length \displaystyle x of the diagonal:

\displaystyle
 x^2 = 1^2 + 1^2
 \quad \Leftrightarrow \quad
 x = \sqrt{1^2 + 1^2} = \sqrt{2}\,\mbox{.}

Each triangle has the diagonal as the hypotenuse. Thus we can obtain the value of the trigonometric functions for the angle \displaystyle 45^\circ:


[Image]

\displaystyle \begin{align*} \cos 45^\circ &= \frac{1}{\sqrt{2}}\\[8pt] \sin 45^\circ &= \frac{1}{\sqrt{2}}\\[8pt] \tan 45^\circ &= \frac{1}{1}= 1\\ \end{align*}

Example 6

Imagine an equilateral triangle where all sides have length 1. The angles of the triangle are all 60°. The triangle can be divided into two halves by a line that divides the angle at the top in equal parts.


[Image]


The Pythagorean theorem allows us to calculate that the length of the vertical side of half-triangle is \displaystyle x=\sqrt{3}/2. Using the definitions we then get that


[Image]

\displaystyle \begin{align*} \cos 30^\circ &= \frac{\sqrt{3}/2}{1} = \frac{\sqrt{3}}{2}\,\\[8pt] \sin 30^\circ &= \frac{1/2}{1} = \frac{1}{2}\,\\[8pt] \tan 30^\circ &= \frac{1/2}{\sqrt{3}/2} = \frac{1}{\sqrt{3}}\,\\ \end{align*} \qquad\quad \begin{align*} \cos 60^\circ &= \frac{1/2}{1} = \frac{1}{2}\\[8pt] \sin 60^\circ &= \frac{\sqrt{3}/2}{1} = \frac{\sqrt{3}}{2}\\[8pt] \tan 60^\circ &= \frac{\sqrt{3}/2}{1/2}=\sqrt{3}\\ \end{align*}


Trigonometric functions for general angles

For angles less than 0° or greater than 90° the trigonometric functions are defined using the unit circle (that is the circle that has its centre at the origin and has radius 1).

The trigonometric functions \displaystyle \cos u and \displaystyle \sin u are the x- and y- coordinates of the point on the unit circle reached by turning through the angle \displaystyle u, as shown in the diagram on the right.

[Image]

The tangent function is then defined as

\displaystyle \tan u = \displaystyle\frac{\sin u}{\cos u}

and the value of the tangent can be interpreted as the slope for the radial line.


Example 7

From the figures below, we obtain the values of cosine and sine.

[Image]

\displaystyle \begin{align*} \cos 104^\circ &\approx -0\mbox{.}24\\[8pt] \sin 104^\circ &\approx 0\mbox{.}97\\[8pt] \tan 104^\circ &\approx \dfrac{0\mbox{.}97}{-0\mbox{.}24} \approx -4\mbox{.}0\\ \end{align*}

[Image]

\displaystyle \begin{align*} \cos 201^\circ &\approx -0\mbox{.}93\\[8pt] \sin 201^\circ &\approx -0\mbox{.}36\\[8pt] \tan 201^\circ &\approx \dfrac{-0\mbox{.}36}{-0\mbox{.}93} \approx 0\mbox{.}4\\ \end{align*}

Example 8

Which sign do the following have?

  1. \displaystyle \cos 209^\circ

    Since the angle \displaystyle 209^\circ can be written as \displaystyle 209^\circ = 180^\circ + 29^\circ the angle corresponds to a point on the unit circle which lies in the third quadrant. The point has a negative x-coordinate, which means that \displaystyle \cos 209^\circ is negative .

[Image]

  1. \displaystyle \sin 133^\circ

    The angle \displaystyle 133^\circ is equal to \displaystyle 90^\circ + 43^\circ and gives a point on the unit circle which lies in the second quadrant. The quadrant has points with positive y-coordinate, and therefore \displaystyle \sin 133^\circ is positive.

[Image]

  1. \displaystyle \tan (-40^\circ)

    By drawing angle \displaystyle -40^\circ in the unit circle one obtains a radial line which has a negative slope, so that \displaystyle \tan (-40^\circ) is negative.

[Image]

Example 9

Calculate \displaystyle \,\sin\frac{2\pi}{3}.

Note that

\displaystyle
 \frac{2\pi}{3} = \frac{4\pi}{6}
                = \frac{3\pi+ \pi}{6}
                = \frac{\pi}{2} + \frac{\pi}{6}.

This shows that the point on the unit circle corresponding to the angle \displaystyle 2\pi/3 is in the the second quadrant and makes the angle \displaystyle \pi/6 with the positive y-axis. If we draw an extra triangle as in the figure below on the right, we see that the \displaystyle 2\pi/3- point on the unit circle has a y-coordinate which is equal to the adjacent side \displaystyle \cos \frac{\pi}{6} = \sqrt{3}/2. So we have that

\displaystyle
 \sin\frac{2\pi}{3} = \frac{\sqrt{3}}{2}\,\mbox{.}

[Image]


Graphs of the trigonometric functions

In the last section we used a unit circle to define the cosine and sine of arbitrary angles, and we will often use the unit circle in the future, for example, to derive trigonometric relationships and solve trigonometric equations. However, there are certain characteristics of the trigonometric functions that are better illustrated by drawing their graphs.


[Image]

The graph of the sine function

[Image]

The graph of the cosine function

[Image]

The graph of the tangent function


In these graphs, we might observe several things more clearly than in the unit circle. Some examples are:

  • The curves for cosine and sine repeat themselves after a change in angle of \displaystyle 2\pi, that is \displaystyle \cos (x+2\pi) = \cos x and \displaystyle \sin (x+2\pi) = \sin x. To see why this is true, note that on the unit circle \displaystyle 2\pi corresponds to a complete revolution, and after a complete revolution we return to the same point on the circle.
  • The curve for the tangent repeats itself after a change in angle of \displaystyle \pi, that is \displaystyle \tan (x+\pi) = \tan x. Two angles which differ by \displaystyle \pi share the same line through the origin of the unit circle and thus their radial lines have the same slope.
  • Except for a phase shift of \displaystyle \pi/2 the curves for cosine and sine are identical, that is \displaystyle \cos x = \sin (x+ \pi/2); more about this in the next section.


The curves can also be important when examining trigonometric equations. With a simple sketch, you can often get an idea of how many solutions an equation has, and where the solutions lie.

Example 10

How many solutions has the equation \displaystyle \cos x = x^2 ( where \displaystyle x is measured in radians)?

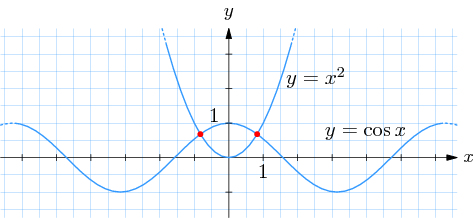

By drawing the graphs \displaystyle y=\cos x and \displaystyle y=x^2 we see that the curves intersect in two points. So there are two x-values for which the corresponding y-values are equal. In other words, the equation has two solutions.

[Image]


Exercises

Study advice

Basic and final tests

After you have read the text and worked through the exercises, you should do the basic and final tests to pass this section. You can find the link to the tests in your student lounge.


Keep in mind that...

If you have studied trigonometry, then you should not be afraid to use it in geometric problems. It often produces a simpler solution.

You may need to spend a lot of time understanding how to use a unit circle to define the trigonometric functions.

You should get into the habit of calculating with precise trigonometric values. It is good training in calculating fractions and will eventually help you handle algebraic rational expressions.
